FILTRATION OF LIQUIDS

EKOFILTER FILTERS AND EQUIPMENT FOR LIQUID FILTRATION AND ALL COARSE, MICRO AND ULTRA FILTRATION OF LIQUIDS

  • Devices and filters for microfiltration
  • Cartridge filter
  • Capsule filter
  • Filter housings

Membrane systems are best utilized in demanding applications where extreme process conditions or difficult feed flows make other separation methods unsuitable. Cross flow systems have proven to be particularly effective for high solids or highly viscous liquids or when processing must be carried out at elevated temperature, pressure or extreme pH.

  • Ekofilter canvas filter and press filter with associated equipment
  • Ekofilter filter strips and filter press strips with associated equipment
  • Ekofilter canvas filter and drum vacuum filters with associated equipment
  • Ekofilter filter strips and strip vacuum filters with associated equipment
  • Ekofilter filters in rolls and plates for filtering oil, emulsions and other liquids with associated equipment

FILTER PRESS

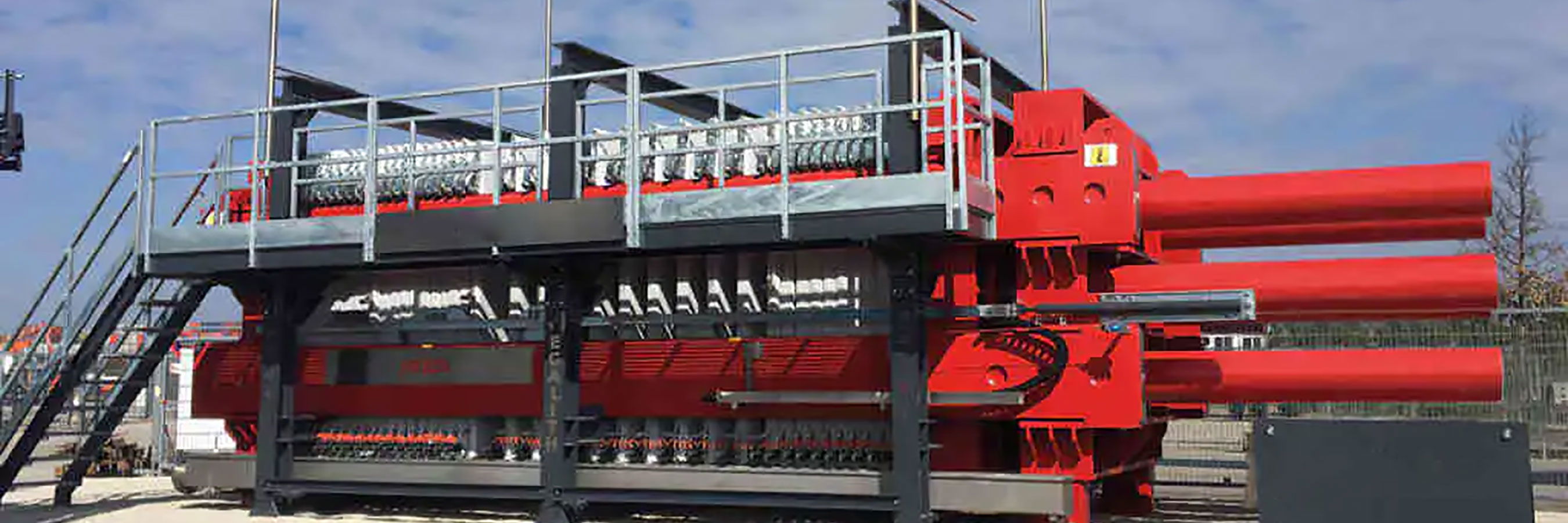

NEW!!! - FILTER PRESS

The world's fastest plates filter presses - Technologically advanced

The EKOFILTER plates Filter Press is designed to achieve the best results in industrial sludge dewatering. All EKOFILTER filter presses are designed for use with HPT (High Pressure Technology) capable of working both at operating pressures common to all filter presses, 5–7 bar, and at high pressures close to or above 16–21 bar. This is made possible by the highly specialised design of our machines and the use of the highest quality and engineering level components such as hydraulic power units and pistons, oversized chassis structures and in addition high pressure pumps.

We work for many different sectors, the most important being mining, aggregates, gravel, sand, stone, ceramics and glass. Our mission is total customer satisfaction, so we offer prompt after-sales service, as well as pre-sales consulting to understand the real needs of our potential customers.

PRODUCTS

  • EKOFILTER - PRESS CLOTHES

    Filter cloth for filter press for industrial wastewater treatment.

  • FILTER PRESS

    The world's fastest plates filter presses - Technologically advanced.

  • FILTER BAGS

    Filter bags are made of needle-felt and monofilament wovens with excellent chemical stability and heat resistance. The surface of the bags are singed, calendered or laminated, asuring no fiber shedding.

  • EKOFILTER FILTER STRIPS

    APPLICATION: Vacuum and belt presses

  • EKOFILTER FILTER STRIPS

    Application: Vacuum and belt presses • Example alligator joint filter belt.

  • EKOFILTER FILTER STRIPS AND SIVES

    Application: Vacuum and belt presses.

  • EKOFILTER FILTER STRIPS AND SIVES

    Application: Vacuum and belt presses.

  • EKOFILTER FILTER STRIPS AND SIVES

    Application: Vacuum and belt presses.

  • BELT ROLLER PRESS

    Application: industrial wastewater treatment.

  • BELT ROLLER PRESS

    Application: industrial wastewater treatment.

  • EKOFILTER FILTER HOUSING AND CARTRIDGES

    Ekofilter chemical filtration solutions.

  • SANITARY DISC FILTER HOLDER

    Sanitary housings of the HM series are specially designed for the filtration of liquids and gases.

  • TROLLEY FILTRATION SYSTEM

    Trolley filtration system consists of filters (bag filter/cartridge filter), booster pump, trolley and other parts. The booster pump may be replaced by diaphragm pump, centrifugal pump or rotor pump etc.

  • EKOFILTER PP FILTER CARTRIDGE

    Filter cartridges (candle filters) are characterized by polypropylene fibers that offer broad chemical compatibility, high flow rates and high dirt holding capacity.

  • EKOFILTER PP FILTER CARTRIDGES

    High-flow filter cartridges are characterized by a large filter surface and high dirt retention capacity. They are more cost-effective when it comes to filtration that requires high flow rates and long life.

  • EKOFILTER CAPSULE FILTER

    Capsule filters are designed to safely filter small amounts of liquids and pharmaceutical and chemical products with high added value. Disposable filters can help eliminate cleaning issues and additional certification costs.

  • MELT-BLOWN FILTER CARTRIDGE

    Typical liquid flow rate @23℃ • RP series filter cartridges are made of 100% PP fibers with graduated pore structure. They can provide high dirt holding capacity, small pressure drop, high flow rate, good chemical compatibility, little fiber release and long service life.

  • STRING WOUND FILTER CARTRIDGE

    WP series filter cartridges are manufactured at a continuous high winding speed, creating superior cartridge integrity with hundreds of tunnels that taper from the surface to the core. The structure of loose outer and tight inner layers can provide true depth filtration with high dirt holding capacity and extremely low media migration. Cartridges are available in a variety of filter media and core configurations.

  • SINTERED STAINLESS STEEL FILTER CARTRIDGE

    The sintered stainless steel filter cartridge is made of 5 layers of sintered stainless steel. The insert has high temperature resistance and high pressure resistance. To extend the life, it can be restored by backwashing. The filter inserts are particularly suitable for highly viscous process fluid.

  • STAINLESS STEEL PLEATED FILTER CARTRIDGE

    Pleated stainless steel filter inserts are made of sintered stainless steel. They can provide absolute filtration efficiency, high dirt holding capacity and high flow rate.

  • EKOFILTER PE/PA FILTER CARTRIDGE

    PE/PA filter cartridges are sintered from polyethylene powder, which results in uniform pore size, resistance to high temperatures, strong acids, bases and most solvents and also has good mechanical strength.

  • TITANIUM FILTER CARTRIDGES

    Titanium filter cartridges are formed from titanium powder and sintered at high temperature. They can be used at temperatures below 280℃ and also in corrosive media. Uniform pore size distribution and easy regeneration are their advantages.

  • EKOFILTER CANDLE FILTER HOUSING

    The housings of the candle filters are made of stainless steel 304/316L, and the filter inserts made of PE/PA serve as the filter medium. The filter covers a small area and is particularly suitable for the filtration of liquids in large plants for water treatment, chemical production, pharmaceutical and food industries.

  • EKOFILTER CANDLE FILTER HOUSING

    The housings of the candle filters are made of stainless steel 304/316L, and the filter inserts made of PE/PA serve as the filter medium. The filter covers a small area and is particularly suitable for the filtration of liquids in large plants for water treatment, chemical production, pharmaceutical and food industries.
